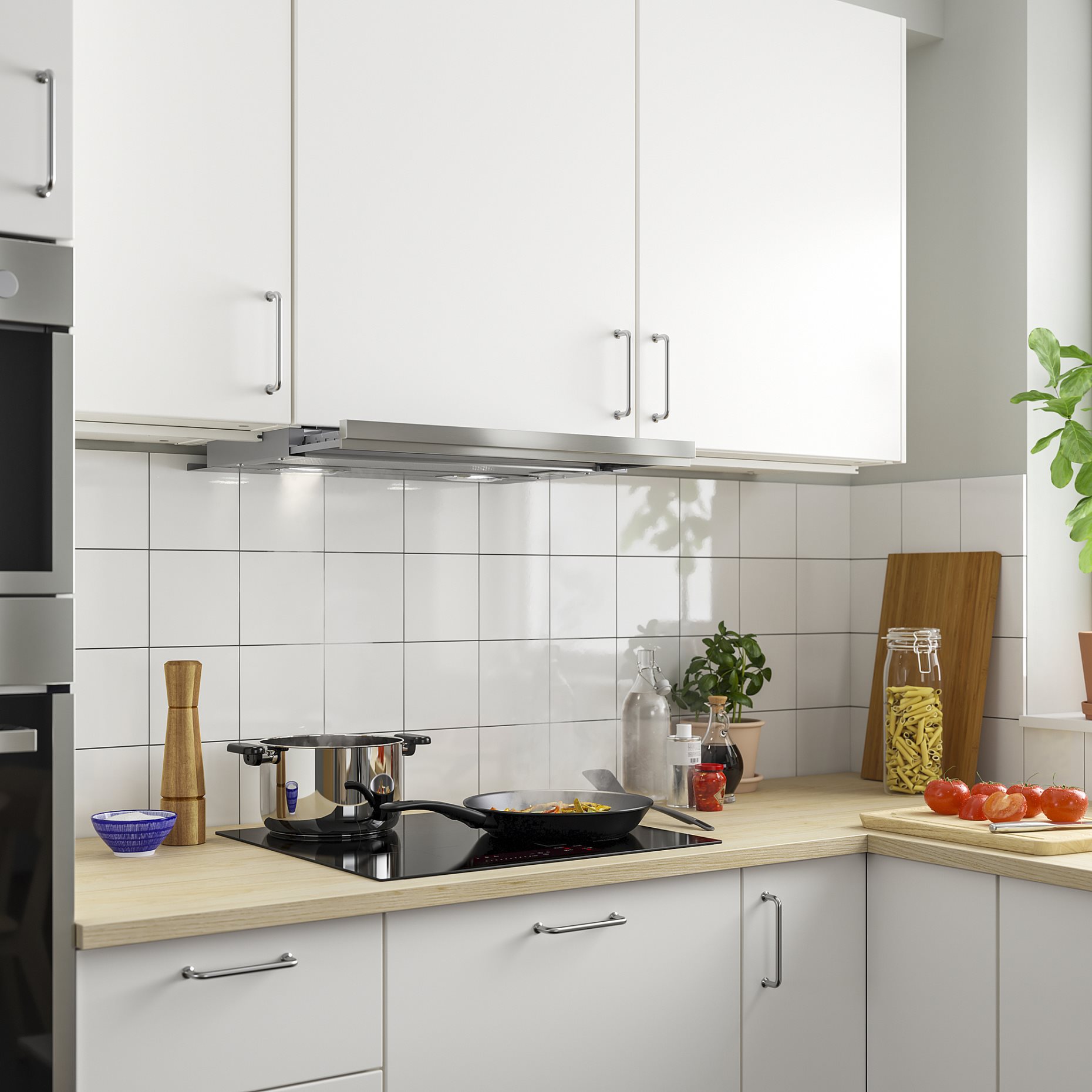

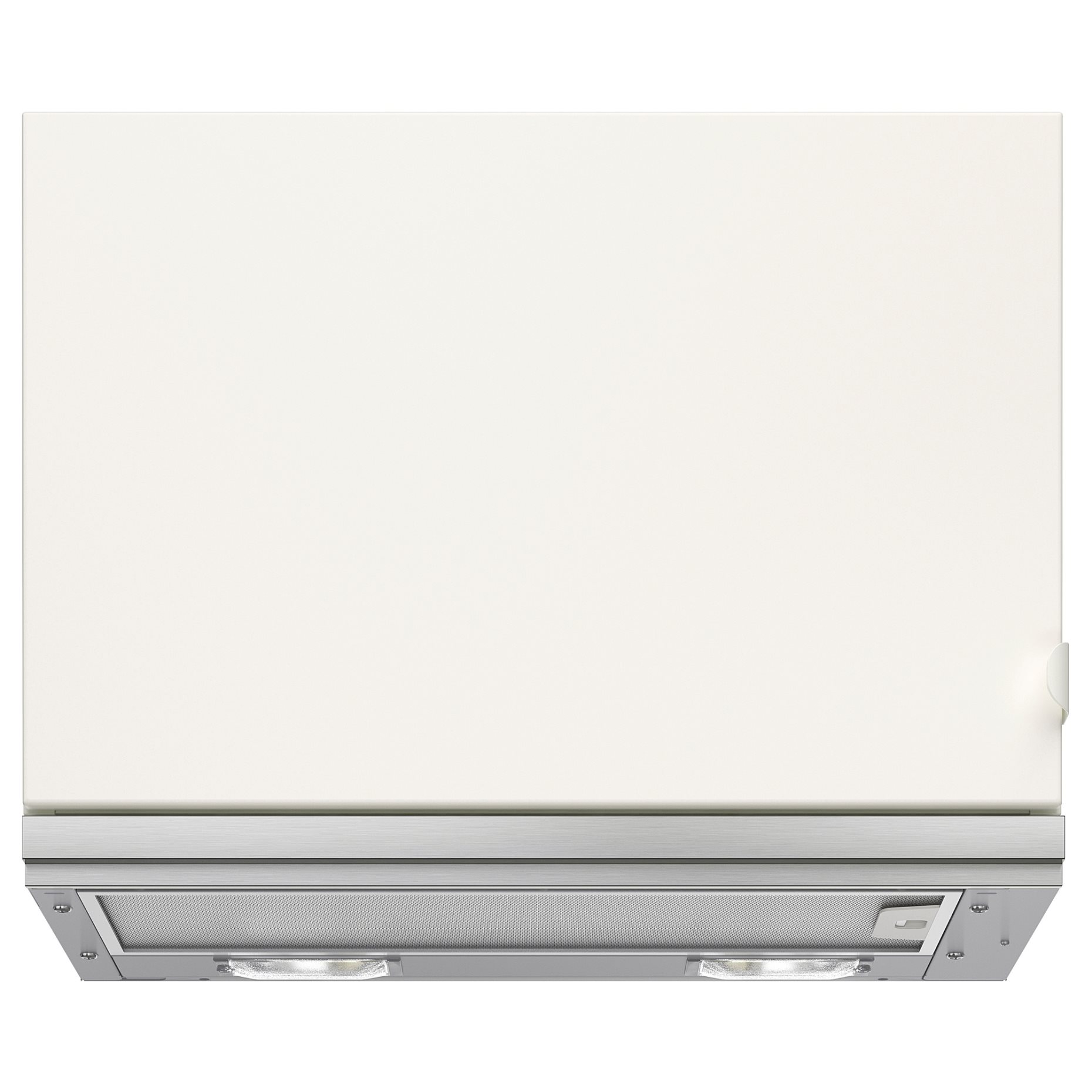

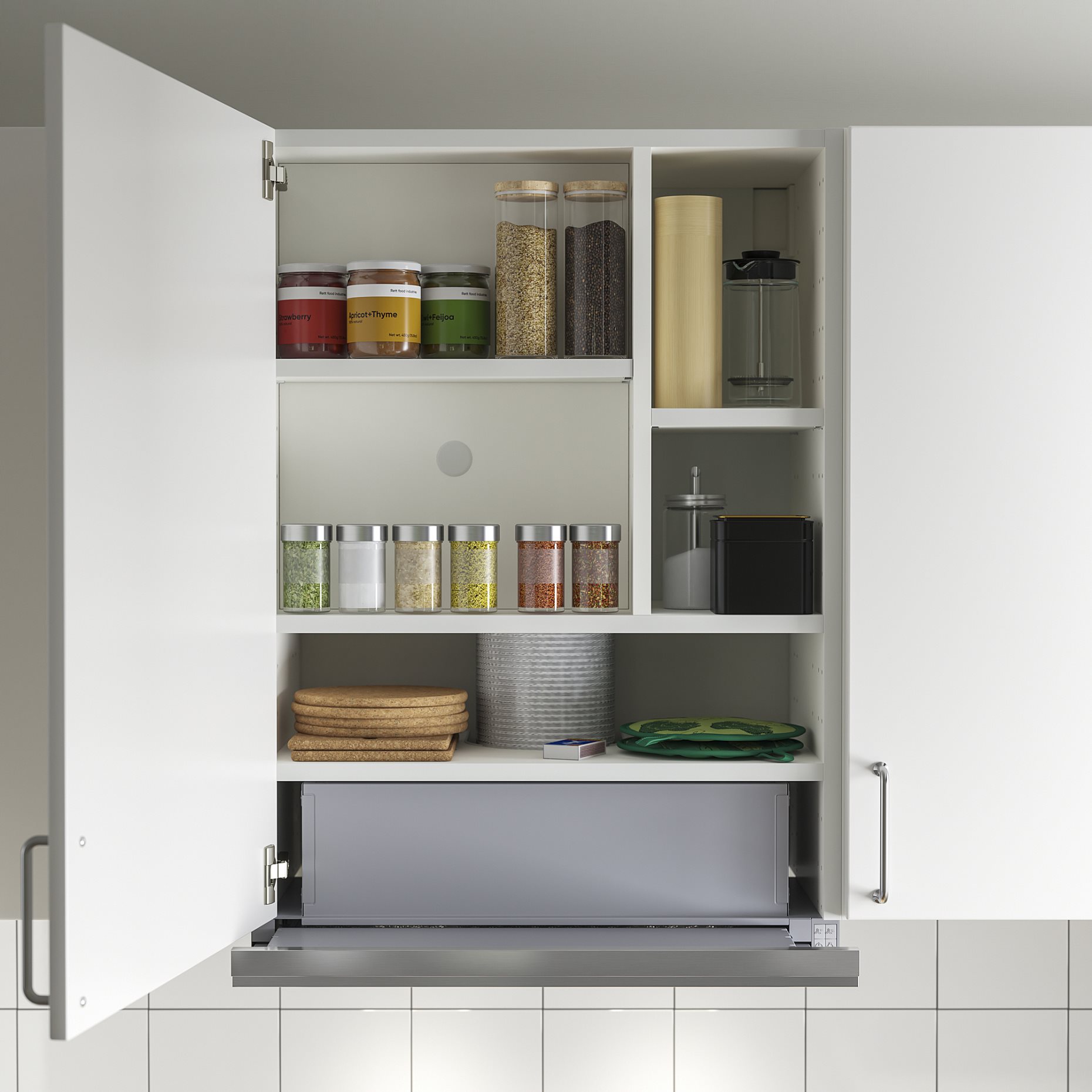

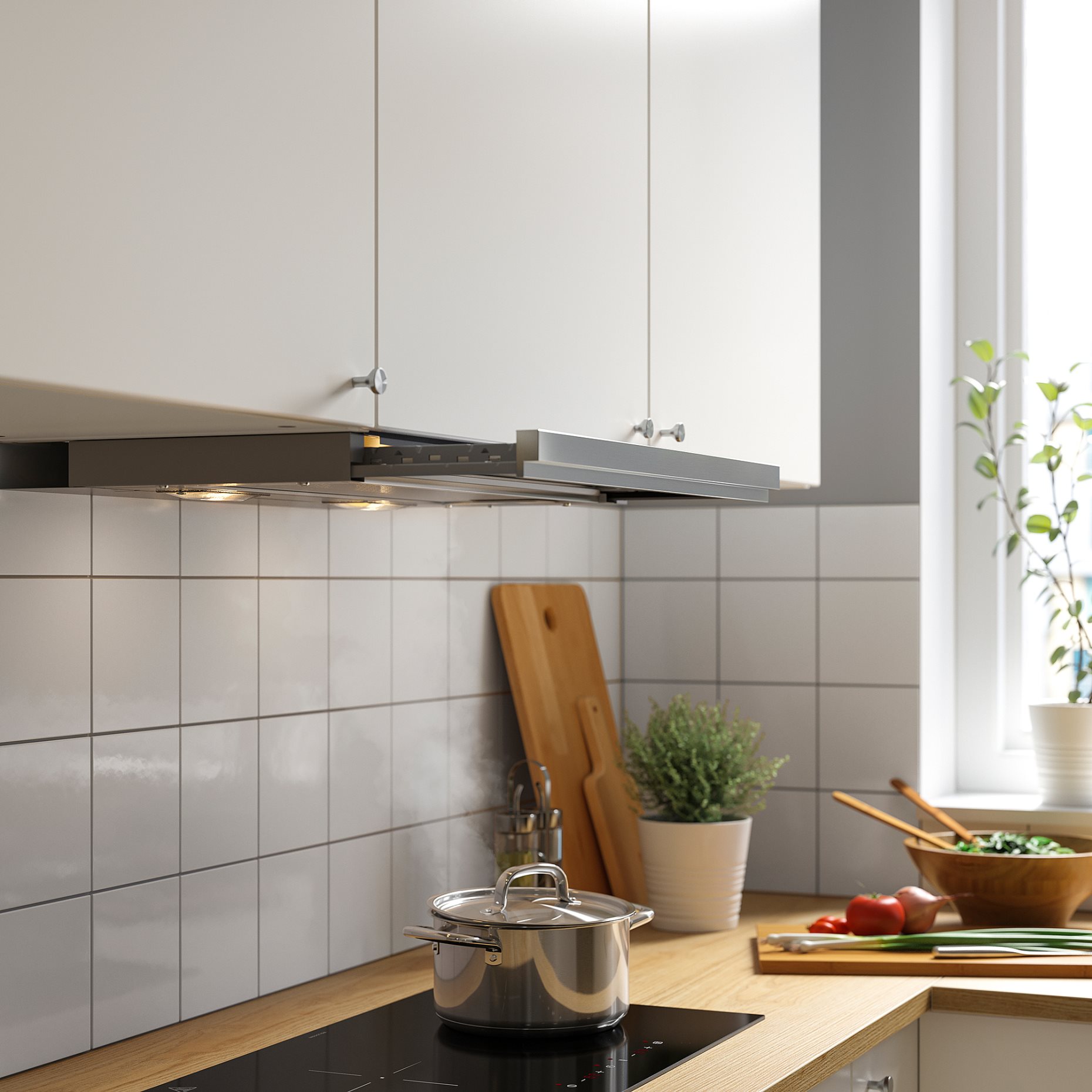

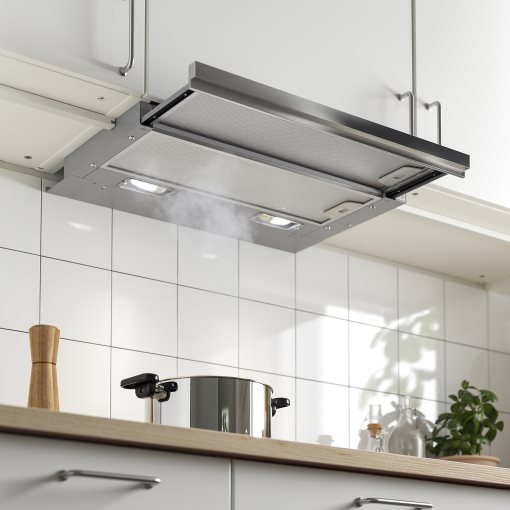

Prefer a hidden hood? UTDRAG built-in extractor hood with LED lighting is mounted almost invisibly in a wall cabinet. You start it and adjust the extraction area by pulling out the hood’s lower part.

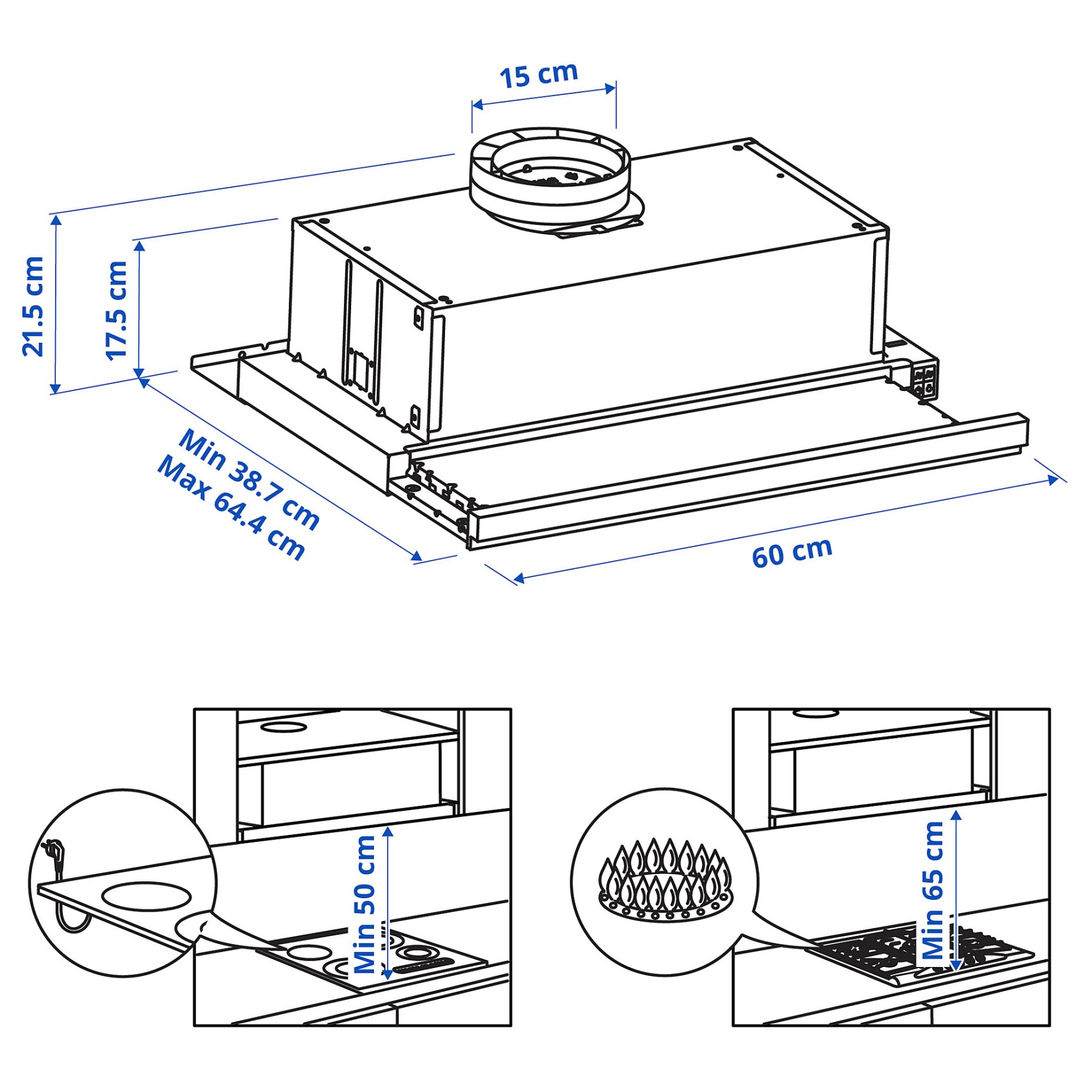

Min. depth: 38.7 cm
Max. depth: 64.4 cm
Height: 21.5 cm
Weight: 7.60 kg
Cord length: 109.0 cm
Motor power: 110 W
Length : 68 cm
Width : 38 cm
Height : 27 cm
Diameter :
Gross Volume : 67.8 l
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Extraction rate in exhausting mode: 340 m³/h.
Noise level at max. exhaust speed: 67 dB (A).
Extraction rate in re-circulation mode: 140 m³/h.
Noise level at max. re-circulation speed: 72 dB (A).
Voltage: 220-240V.
Assembly and installation
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

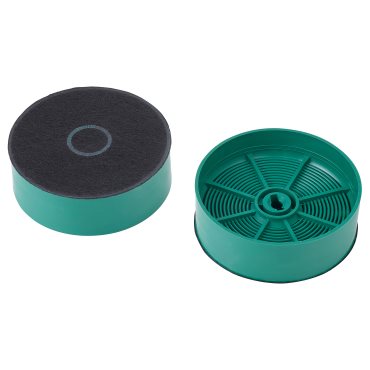

For recirculation installation: to be completed with NYTTIG TUB 150 flexible pipe and NYTTIG FIL 120 charcoal filter.
Additional information
This product bears the CE mark.
Additional information
Built-in extractor hood with 3 different speeds.
Sold separately
Flexible pipe for fan and charcoal filter sold separately.
Safety and compliance
This product bears the Serbian mark of conformity.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
3 speed settings allow you to increase or decrease the hood’s power at the push of a button, depending on your cooking needs.

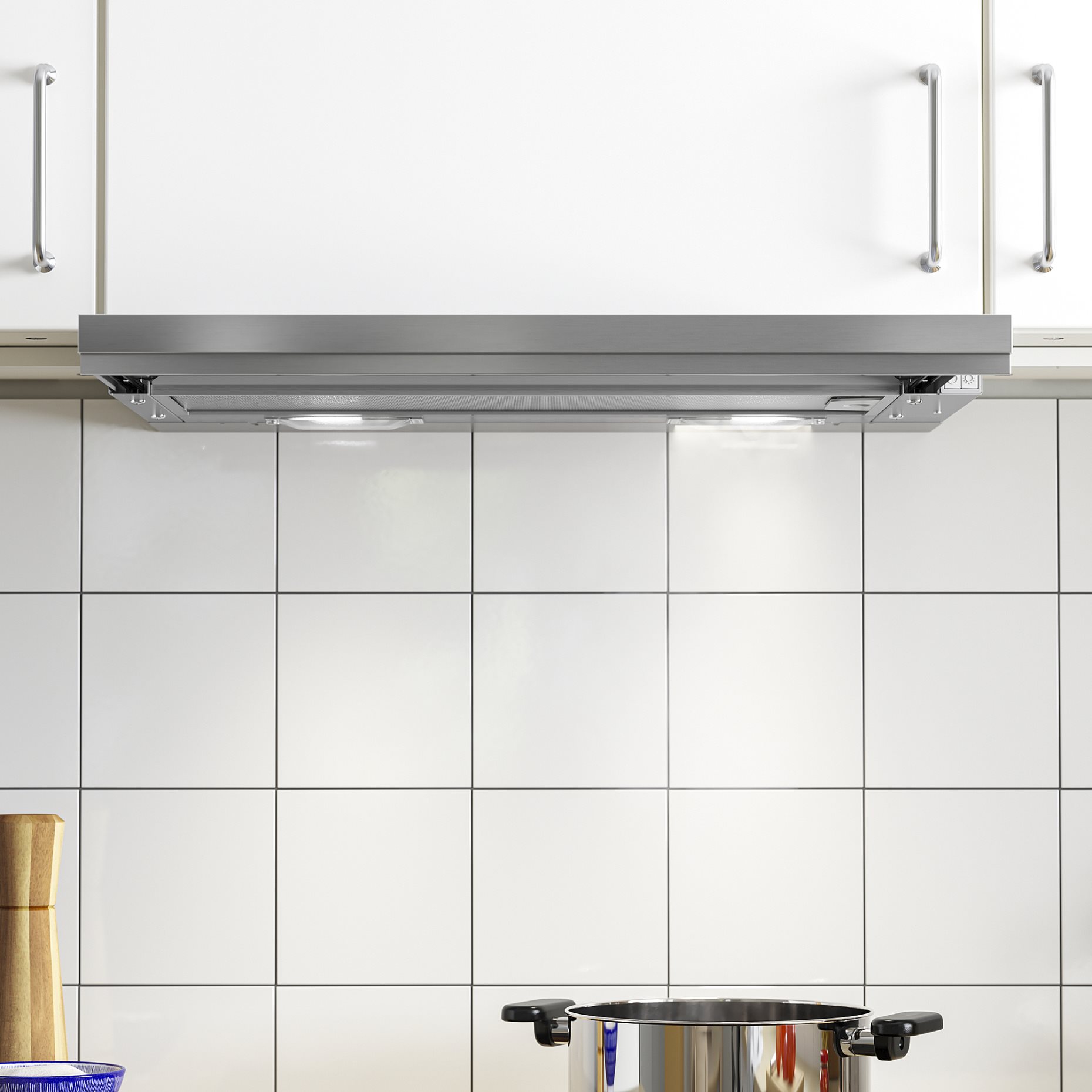

LED light source included; effectively illuminates the cooking surface and provide energy saving.

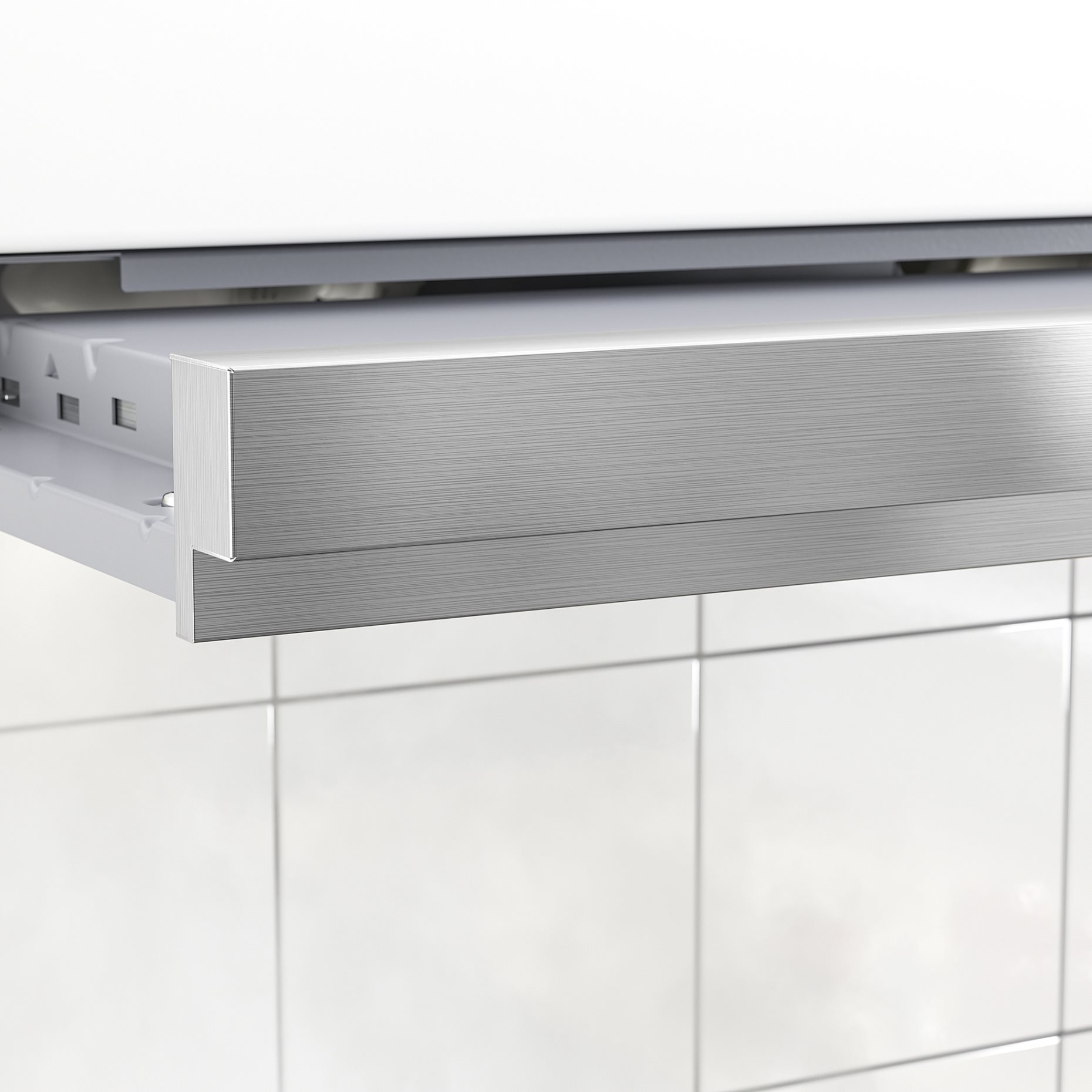

Pulls out to provide a larger exhaust area.
You can easily remove and clean the grease filter in the dishwasher.
Function/solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
How to choose
Find the perfect appliance for you and your kitchen
Everyone has different needs, tastes and budgets – so we’ve made choosing easier by grouping our appliances into levels. Small space? TILLREDA plug-n-play options fit perfectly. On a tight budget? Go for LAGAN appliances. Need an everyday helping hand? IKEA 300 options deliver core functionality you can count on. Our all-purpose IKEA 500 appliances are ready for any job, big or small. And if you’re seeking top-notch performance, IKEA 700 appliances go above and beyond.
Quality/durability
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
