VALLAMOSSE, thermostatic shower mixer, 103.496.55

VALLAMOSSE thermostatic shower mixer


€ 59,99
295 reward points
Assembly Instructions Download PDF (2 MB)
Features Material Key Features Care Instructions Good to Know Designer Benefits

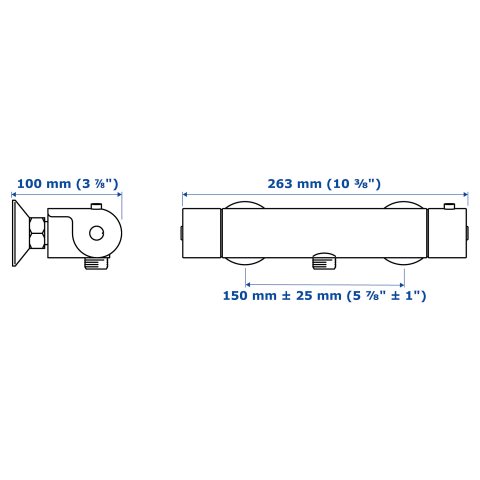

Product Dimensions
Connection centre distance: 150 mm
Width: 265 mm
Depth: 100 mm
Package Dimensions
Package Number: 1
Length: 39 cm
Width: 12 cm
Height: 7 cm
Diameter: -
Net Weight: 1.31 kg
Gross Weight: 1.58 kg
Gross Volume: 3.1 l
Thermostat body:
Polyamide plastic Thermostat housing/ Handle:
Zinc, Chrome-plated
Key Features
Key Features
No entries
Care Instructions
Care Instructions
Clean with a soft cloth dampened with water and a mild washing-up detergent or soap. Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive. Turn the thermostat from full cold to full hot from time to time. Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Good to Know
Good to Know
Separate flow and temperature controls. 150 mm fixed inlet centres. The thermostatic mixer is pre-set to a safety stop temperature of 38 °C. Since operating conditions in each supply system varies, it might be necessary to calibrate the mixer according to the service and installation instructions. You can override the safety stop temperature by pressing the override button. The thermostatic shower mixer can be used in high pressure systems. Tested to manage a pressure of max. 10 bar (1000 kPa). Recommended working pressure: 1.0 - 5.0 bar (100 kPa - 500 kPa). Recommended hot water temperature: 60°-65°C/140°F-149°F. Recommended cold water temperature: 10-15°C/50°F-59°F. May be combined with head and hand shower kit or riser rail with hand shower.
IKEA of Sweden

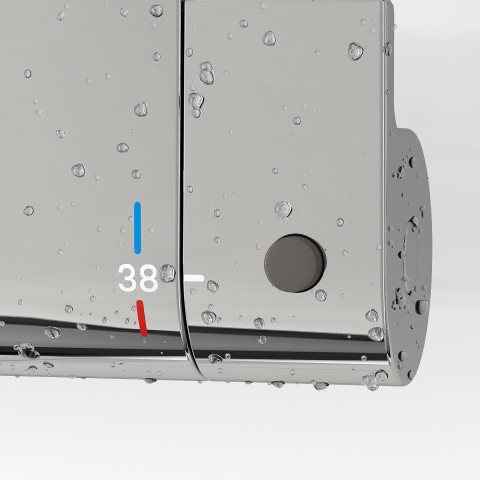

10 year guarantee. Read about the terms in the guarantee brochure.A 38°C safety stop button prevents water from getting too hot and accidentally causing burns. Hotter temperatures can be reached by pressing the override button on the temperature control.

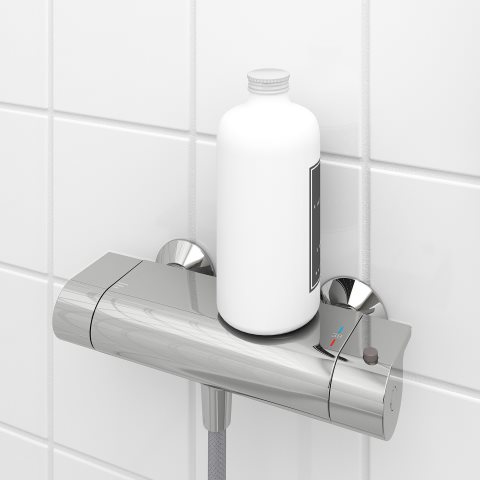

The shower mixer has a “cold touch” feature. Thanks to the anti-scald technology, the surface of the mixer bar never heats up and is always safe to touch.The built-in shelf on the shower mixer is perfect for all those tall shampoo bottles that are often tricky to store in the shower.
Chrome-plated brass is a hard and durable surface that is easy to clean.
